Why Your Renovation Needs “X-Ray Vision” Before You Start Designing

Before any renovation project begins, understanding the building you are working with is essential. Survey work carried out before design starts can reveal hidden defects, structural concerns, damp, heat loss, and site opportunities that are not visible during a standard inspection.

This article explores how aerial drone surveys and thermal imaging surveys help uncover these hidden conditions, reduce project risk, and support more informed design and budgeting decisions.

Key Takeaways

• Survey work helps identify hidden issues before construction starts.
• Early discoveries reduce the risk of delays and unexpected costs.
• Drone surveys provide valuable information about roofs and site conditions.
• Thermal imaging reveals heat loss, damp risks, and hidden services.
• Better information leads to better design decisions.
• Successful projects rarely happen by accident. They are usually the result of thorough investigation before work begins.

Pre-construction surveys: Finding hidden risks before renovation

The moment every homeowner dreads starts with a discovery they didn’t see coming.

A structural beam that wasn’t on any drawing. A drain running exactly where the new extension needs to go. Damp hiding behind a fresh layer of plasterboard. These aren’t rare horror stories but exactly what happens when a build starts without proper pre-construction survey work.

When these surprises happen mid-build, the costs don’t just rise; they multiply. Timelines collapse. And the date (and budget!) you promised yourself suddenly looks impossible.

You cannot underestimate the importance of thorough survey work before a design is finalised, before it is detailed, and certainly before a tool is put to a wall. This isn’t a box-ticking exercise. The information gathered changes everything: how a project is designed, how it is specified, and how confidently anyone can say, “This is what it will cost, and this is when it will be done.”

Here is a look at the two types of “super-vision” that allow you to see what is normally hidden.

---

Aerial (drone) surveys: Seeing the unseen

Most homeowners have never had anyone properly look at their roof. Why would they? It’s hard to access, expensive to scaffold, and until it leaks it’s easy to ignore. And that’s why we use aerial drone surveys to change that entirely.

High-resolution context

Drone access gives us a crystal-clear picture of everything above eye level: roof condition, deformation, gutters, chimney stacks, and flashings. We can distinguish between a roof that looks rough but is structurally sound, and one that needs intervention before we touch the loft.

For example, on a recent project, our drone work surfaced:

• Maintenance Red Flags: Blocked gutters and vegetation growth already causing damp inside.
• Structural Clues: Areas of roof deformation that changed our loft conversion strategy.
• Planning Leverage: We mapped neighbouring context and extensions to strengthen our planning application.
• The “A-ha” Moment: We discovered the garden widened significantly at the rear which was a geometry we couldn’t see from the ground. This became the central design opportunity for the whole scheme.

How drone surveys reduce project risk

The Bottom Line: Issues found now are just information. Issues found mid-build are crises. We’d rather find a blocked gutter now for free than find saturated joists when the ceiling is already open.

---

What does a thermal imaging survey show?

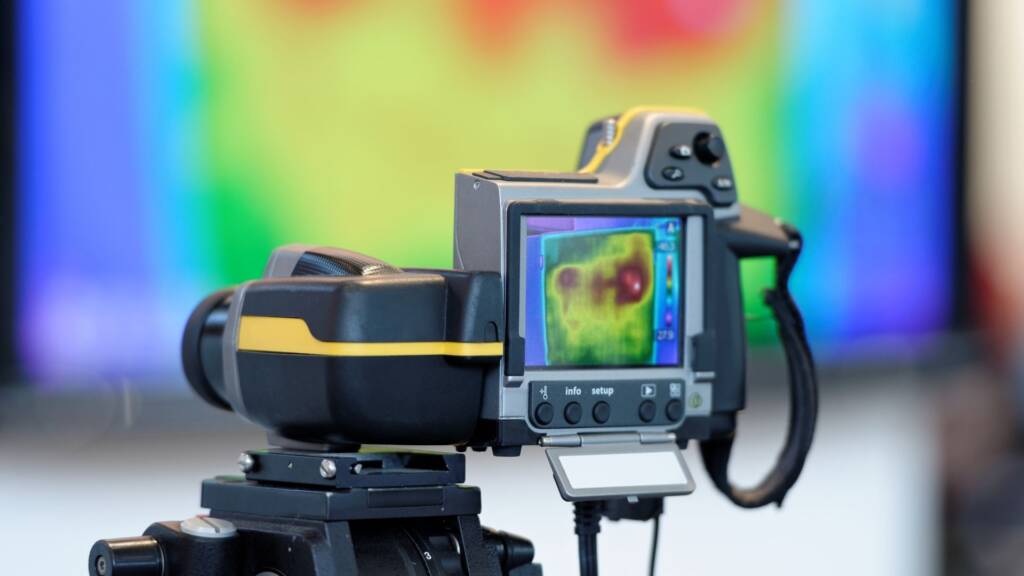

Thermal imaging: Performance behind the surfaces

It’s so important to know how a building is actually behaving before trying to change it. Thermal imaging allows us to see heat, moisture, and hidden infrastructure without touching a single surface.

Heat loss and energy strategy

An external scan show exactly where your money is escaping. On a recent project, an old conservatory was “bleeding” heat into the night, while newer sections stayed cold (meaning the heat stayed inside). This scan allows us to target your budget toward high-impact insulation rather than expensive, blanket treatments.

Mapping damp and cold bridges

Internally, this is the most powerful tool for finding cold bridges and damp risks without “opening up” the walls. We found consistent cold zones in the window frames of a recent survey, allowing us to fix the problem in the drawing stage rather than the remediation stage.

The “hot scan” for hidden services

This is the true x-ray vision. By running the heating, we can trace pipe routes behind walls and floors.

• We confirm actual routes (which often differ from old drawings).
• We avoid accidental damage during demolition.
• We design smarter reconfigurations because we know exactly where the “veins” of the house are.

---

How to prepare for a thermal survey

Getting the most from your thermal survey: A top tip

Where possible, try to do the thermal survey on a cold day.

If we do carry out an external thermal survey, we ask that you please turn your heating on full blast at 2pm for two hours before your survey. The reason for this is that we need a temperature differential of as close to 10°C between inside and outside as possible. Without it, leaks, air gaps, and damp simply won’t show up.

---

What experience has taught us

So are these surveys essential? In the legal sense, no, but they are the difference between a project that reacts and a project that leads. There are not many other design teams that have the competency or the tech to use this data so if you’re discussing your renovation project to other firms, ask if they use this type of x-ray vision. You won’t want to be mis-sold on a “standard” survey that misses the vital details.

At a minimum, I recommend the Aerial Survey, especially for houses with complex roofs or tight site conditions. It’s how we de-risk the unknowns and give you a number you can actually plan your life around.

The projects that run smoothly aren’t the ones where nothing goes wrong. They’re the ones where the surprises were found before they became problems.
